| 加工定制 : | 否 | 型號 : | A-矩形，B-圓形 |
| 材質 : | 碳鋼，不銹鋼 | 樣品或現貨 : | 樣品 |
| 是否標準件 : | 標準件 | 品牌 : | 飛航 |
| 執行標準 : | CB/T615-1995 | 公稱通徑 : | 50-500A |
| 形狀 : | 矩形，圓形 | 表面處理 : | 熱鍍鋅 |

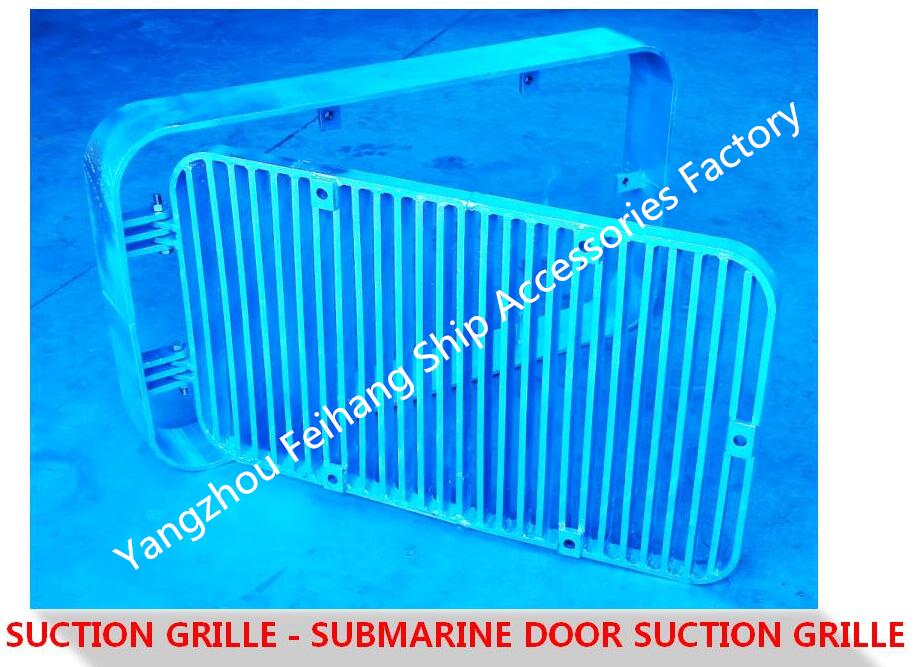

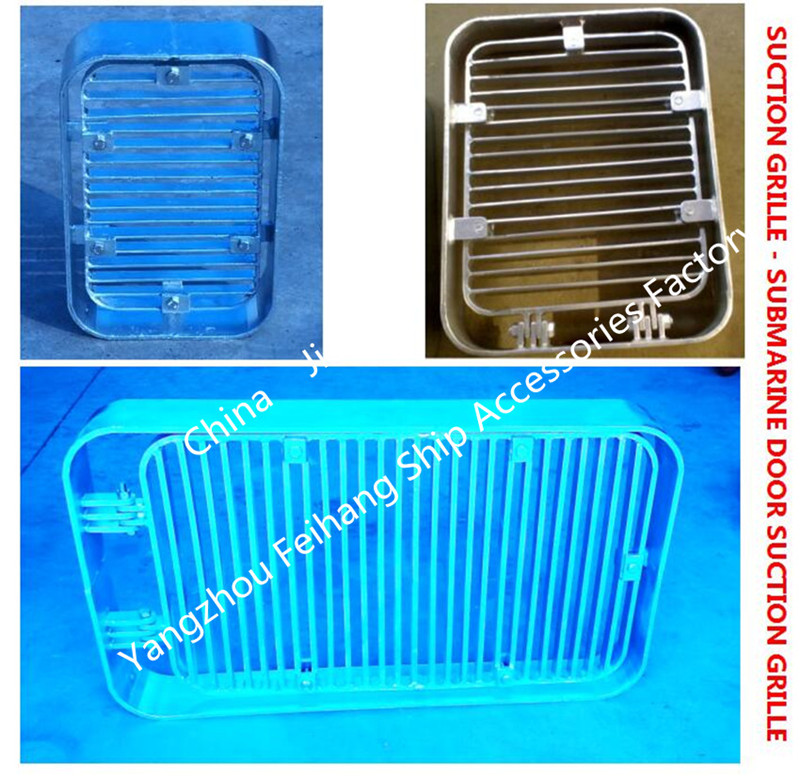

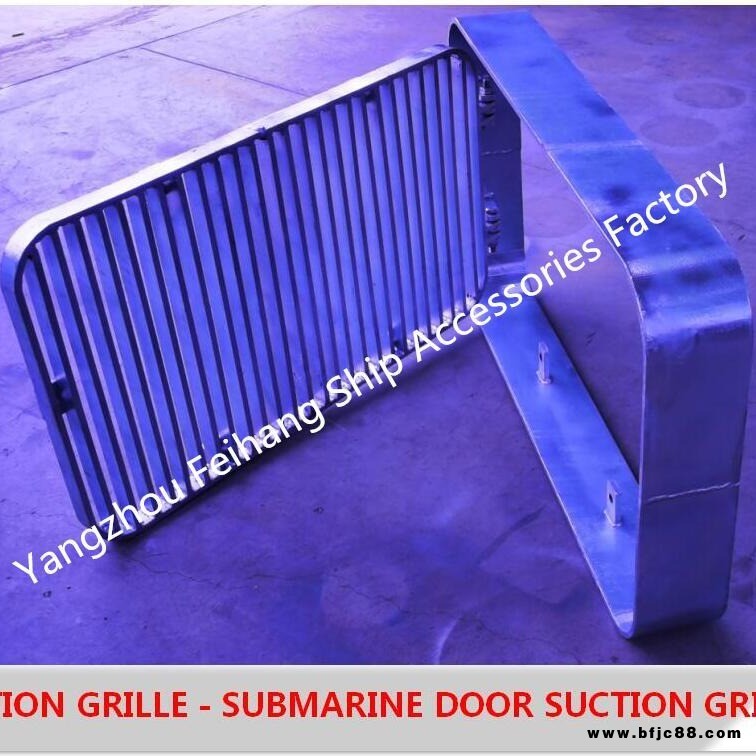

造船用-吸入格柵-海底門吸入格柵-船底吸入格柵
SUCTION GRILLE - SUBMARINE DOOR SUCTION GRILLE
關于CB/T615-1995船用熱鍍鋅吸入格柵-海底門吸入格柵 產品概述
Hot-dip galvanized suction grille - submarine door suction grille Product Overview
船用海底門吸入格柵-海底門熱鍍鋅吸入格柵 的作用是：過濾混合在吸入海水中的雜物,防止雜物阻塞淡水熱交換器及潤滑油熱交換器,同時避免雜物纏繞冷卻水泵等。
Marine submarine door suction grille - Subsea door hot-dip galvanizing suction grille is used to filter and mix debris in the inhaled seawater to prevent debris from blocking the fresh water heat exchanger and the lubricating oil heat exchanger, while avoiding debris winding cooling Pumps, etc.
造船用海底格柵-海底門吸入格柵A500 CB/T615-1995： Submarine grille - submarine door suction grille A500 CB/T615-1995 適用于通海閥公稱通徑為DN500的矩形條狀吸入格柵，海底門吸入格柵，它的格柵座尺寸為：662mm*1176mm，此款船用海底門吸入格柵配套于：船體開孔尺寸為：690mm*1204mm*100mm Applicable to the rectangular strip suction grille with the nominal diameter of DN250, the submarine door suction grille, its grill seat size: 360mm*550mm, this marine submarine door suction grille is matched with: hull opening size For: 384mm*574mm*80mm |
海底格柵-海底門吸入格柵A250 CB/T615-1995： Submarine grille - submarine door suction grille A250 CB/T615-1995 適用于通海閥公稱通徑為DN250的矩形條狀吸入格柵，海底門吸入格柵，它的格柵座尺寸為：360mm*550mm，此款船用海底門吸入格柵配套于：船體開孔尺寸為：384mm*574mm*80mm Applicable to the rectangular strip suction grille with the nominal diameter of DN250, the submarine door suction grille, its grill seat size: 360mm*550mm, this marine submarine door suction grille is matched with: hull opening size For: 384mm*574mm*80mm |
吸入格柵-海底門吸入格柵A200 CB/T615-1995： Suction grille - submarine door suction grille A200 CB/T615-1995: 適用于通海閥公稱通徑為DN200的矩形條狀吸入格柵，海底門吸入格柵，它的格柵座尺寸為：290mm*442mm，此款船用海底門吸入格柵配套于：船體開孔尺寸為：310mm*462mm*60mm Applicable to the rectangular strip suction grille with the nominal diameter of DN200, the submarine door suction grille, its grill seat size: 290mm*442mm, this marine submarine door suction grille is matched with: hull opening size For: 310mm*462mm*60mm |
船用吸入格柵 《Bilge suction grill》海底門吸入格柵的產品特點
Marine suction grille "Bilge suction grill" product features of submarine door suction grille
●CB/T615吸入格柵材質可靠：所有部件材質嚴格GB船舶相關標準
●Reliable material: all parts are made of strict GB ship related standards
●海底門吸入格柵的安裝方式：操作簡單，船上根據格柵外框尺寸，進行海底門開孔，然后焊接并加固，即可完成安裝
●Installation method: easy to operate, the submarine door opening is carried out according to the size of the grille frame on the ship, and then welded and reinforced to complete the installation.
●船底吸入格柵CB/T615-95的密封可靠：所有工藝均采用滿焊，確保所有鏈接部位無縫結合
●Reliable sealing: all processes are fully welded to ensure seamless integration of all link parts
●A型矩形條狀船底吸入格柵跟B型圓形條狀吸入格柵必須要熱鍍鋅，鋅層厚度不得小于430g/㎡
●A type rectangular strip bottom suction grille and B type round strip suction grille must be hot-dip galvanized, the thickness of zinc layer should not be less than 430g/m2
●C型圓形鉆孔船底吸入格柵跟D型矩形鉆孔吸入格柵必須要熱鍍鋅，鋅層厚度可以比A,B型略薄
●C-type circular drilling bottom suction grille and D-shaped rectangular drilling suction grille must be hot-dip galvanized, zinc layer thickness can be slightly thinner than A and B type
●每種船底吸入格柵的固定螺栓固定緊后，螺栓尾端應用環氧封沒
●After fixing the fixing bolts of each bottom suction grille, the end of the bolts should be sealed with epoxy.
