| 產品特性 : | 液壓 | 品牌 : | 北奕 |
| 型號 : | BYPM360S | 工程機械種類 : | 挖掘機械 |
| 產品別名 : | 拔樁機 | 產品用途 : | 型鋼起拔 |
| 產品類型 : | 全新 | 規格 : | 臺 |
拔樁機
介紹

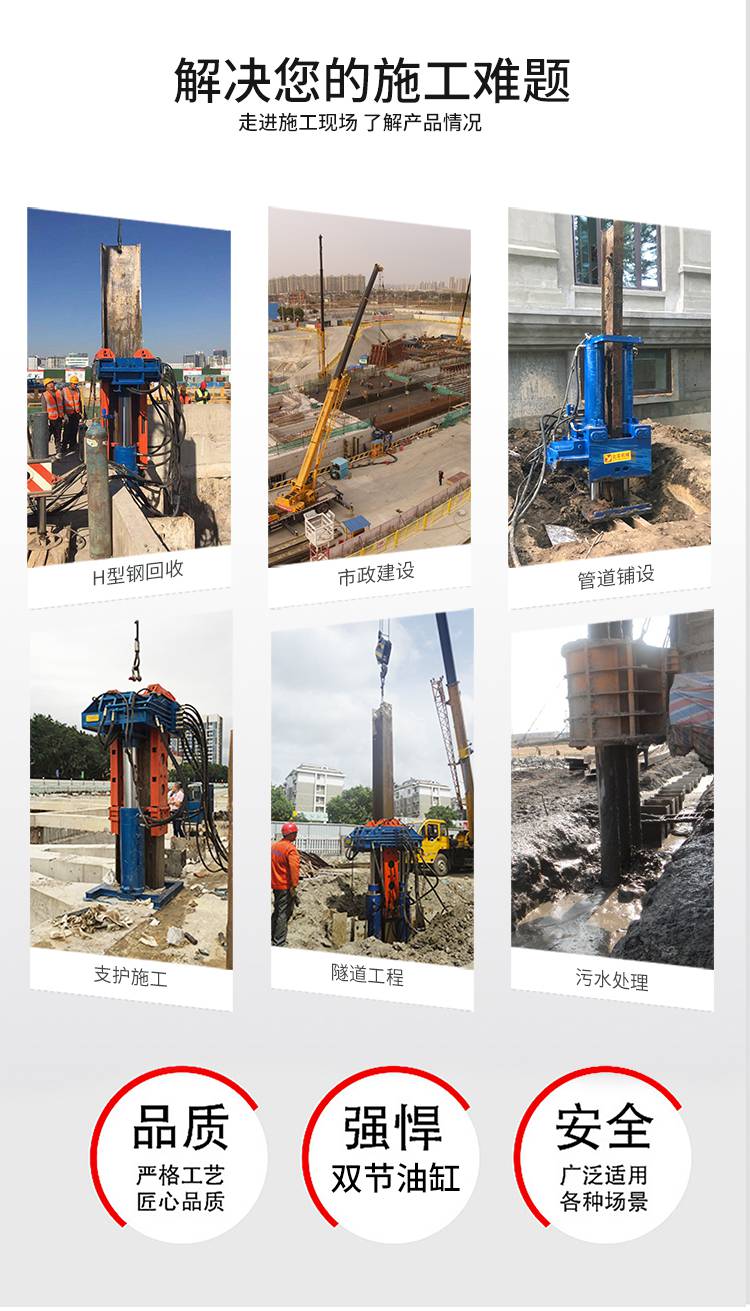

工法型鋼拔樁機主要用于市政建設管道鋪設隧道工程污水處理支護施工中H型鋼回收再利用減少H型鋼的一次性使用降低建筑費用。整機能夠適應場地狹小、頂部空間不足的場地。
H-beam hydraulic pile extractor is mainly used in municipal construction, pipe laying, engineering, sewage treatment, supporting the construction of tunnel. Recycle the H-beam steel piles to reduce the disposable of h-beam piles and reduce construction cost. The whole machine can adapt narrow space and insufficient space on the top of site.
?
工法型鋼拔樁機利用其夾樁器夾住樁頭，液壓缸強制頂壓夾樁器，使之向上頂升一段距離,將樁逐段拔出,適用在粘土、砂土或含少量礫石的土層中拔工字鋼或型鋼樁。
H-beam pile extractor grip the pile head with its clip and hydraulic cylinder compulsory jacked pile clamping apparatus, make it rise up a certain distance, then pull out pile hop by hop. It is used in clay, sand or containing a small amount of gravel soil to pull out the i-beam pile or h-beam steel piles.
?
優勢
1，市場上此類產品目前采用分體式的拔樁機，而我公司采用一體式結構的拔樁機，整體起 作更簡單，花費更少時間。
2.適用于H型鋼200mm-800mm等常用規格起拔作業，如需起拔900mm的H型鋼，需重新定做機器。
3.BY-PM200DS拔樁機，設計新穎，底盤可拆卸，不管多密集的型鋼樁，同樣輕易拔起。
4.BY-PM300LS型拔樁機，設計更為人性，配有雙節油缸，具有調節快慢的功能，節約更多時間，無線遙控，簡單易學。
1.Similar products currently use separate pile drawing machine while our company use autonomous design one-piece structure hydraulic pile extractor. Integral lifting operation more easy and cost less time.
2.Suitable for 500mm-700mm h-beam piles and other commonly used specifications pulling operations. If you need to pull out 900mm h-beam piles, then it needs custom-made.
3.BY-BZJ-300DS Hydraulic pile extractor, modern design, chassis removable. No matter how dense is the steel pile, it can also easily pull out.
4.?BY-BZJ-300LS Hydraulic pile extractor, design is more human nature, efficient. Equipped with double oil-saving cylinder, it has the function of regulating speed and can save more time. ?Wireless remote control, easy to learn.
?
5.?特點
1.專業團隊設計，專利產品，快速移動。
2.一體式設計，整體起吊，省時人工。
3.700噸拉力，強力起拔，可拔32米型鋼，
4.油缸加大，泵站加大，更可起拔40米型鋼。
5.雙節油缸，大缸起拔，小缸加速。
6.遙控操作360°觀察，操作自如。
7.吊板可換，適合300mm-800mm不同寬度的型鋼.
8.可定制起拔900mm寬或更寬的機器。
9.電力泵站，環保設計，操作簡單。
10油缸可左右移動，輕松解決，距離密集的樁。
*National originality,Patent product,Move fast.
* Integrated design,Integral lifting,save time and manual.700 tons of tensile force, strong pull-out, can pull 32m H-beam
* Bigger cylinder,bigger pump satation,can pull 40m H-beam piles.
* Double cylinder,bigger cylinder for pulling,small cylinderfor speeding up.
* Remote control 360 °,Omnidirectional observation,Operate freely.
* Replaceable hanger,suitable for 300-800 mm H beampiles with different width.
* Also can custom made for 900mm H beam piles.
* Electrial pump station,Environmental design,simpleoperation.
*Cylinder can move to left and right to solve Closedspaced piles easily.
?
細節描述
新型工法H型鋼拔樁機New method of h-beam pile extractor
雙節油缸，可以調快慢頻率
Double oil cylinder can adjust speed frequency
底盤穩定性強
Chassis stability is strong
油缸之間的距離可以調節，更能便于在不同環境下作業
The distance between the oil cylinder can be adjusted which is more easy to work in different environment.
雙節可以調快慢頻率的油缸
Double cylinder can adjust speed frequency

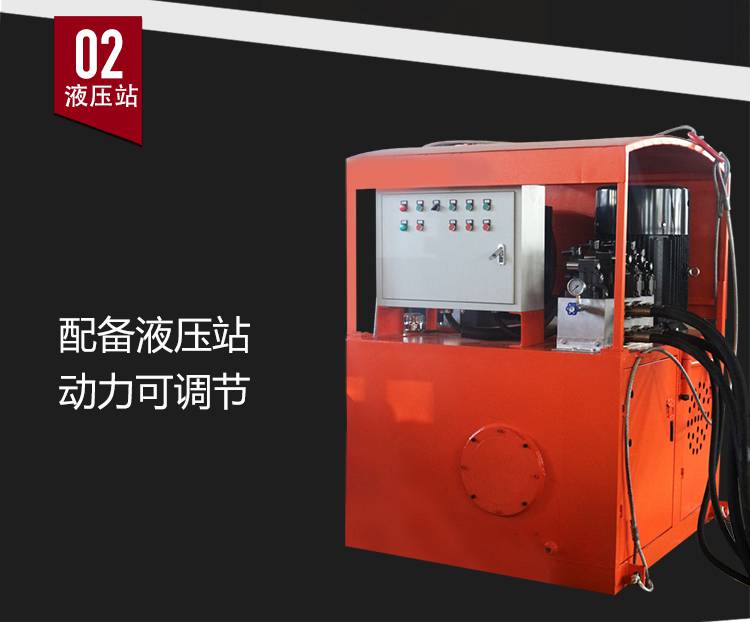

專用液壓站
Efficient hydraulic station
使用分體土方法的拔樁機
Pile extractor using indigenous method of fission
